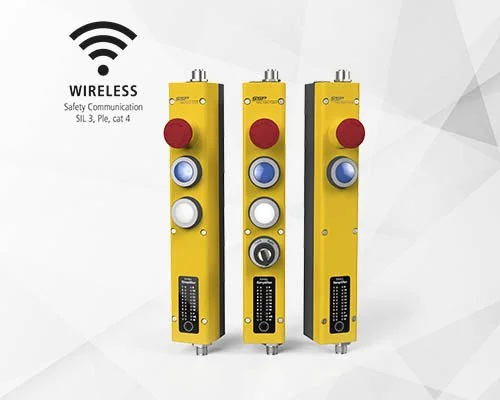

Safety Controllers PLC

SafetySimplifier offers a complete decentralized SIL 3 - PLe - Category 4 solution:

• Safety PLC

• 14 programmable safe I/Os

• Optionally 2 relay outputs

• 60 pre-configurated variants

• setup and wiring within minutes

• no need for expensive safety switch cabinets

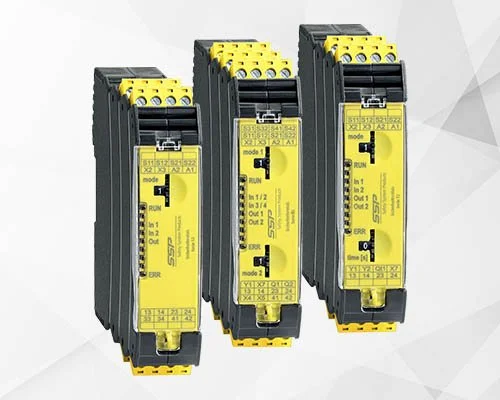

Safety Relays

Universal safety relays for safety control and monitoring:

• Monitoring of all common safety sensors

• Achievable safety level up to PL e / SIL 3

• Short response times (< 10 ms) on request

• High switching capacities and short cycle times

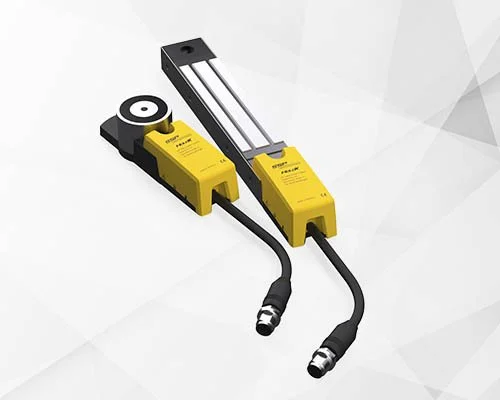

Safety Locks

SSP magnetic process interlocks combine a safe non-contact RFID safety sensor with an intelligent electromagnet in just one device.

With this combination of safe position monitoring and process guard locking, the HOLDX RS1 (600 N holding force) and RL1 (1200 N holding force) are universally applicable and ensure increasing quality and less downtime and setup time.

The movable armature plate has a 50 N permanent magnet which prevents the door from springing open immediately.

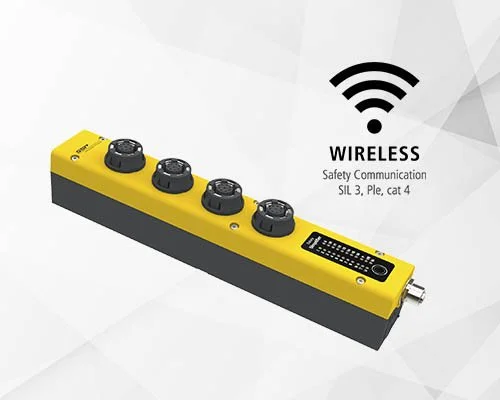

Wireless Safety Distributors

The safe wireless distributor by SSP enables the connection and decentralized build of up to 16 units according to PLe. Every safe distributor includes 14 safe in- and outputs, which are individually configurable

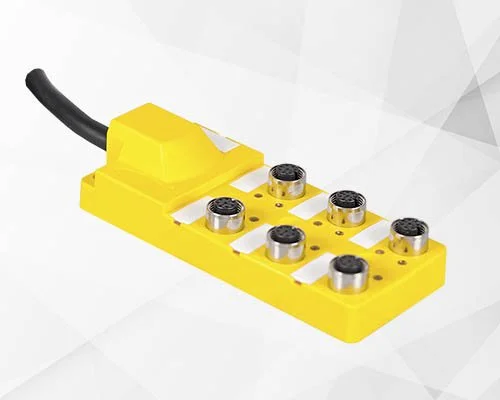

Passive Safety Distributors

Robust passive safety distributor for up to 6 devices.

• Connect up to 6 safety sensors or locks

• Individual release of process locks possible

• Connect up to 6 EDI emergency-stop-buttons

• LED- diagnosis

• Connect sensors via 8-pole M12 connector

• Connect passive distributor XCONN via 19-pole M23 connector

• connector or fixed cable 5m/ 10m

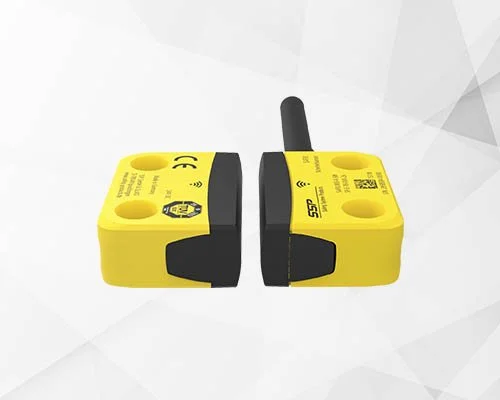

RFID Safety Sensors

• PLe according to EN ISO 13849-1

• Highly coded according to EN ISO 14119

• Series connection of up to 30 sensors without loss of safety

• Integrated EDM function for direct connection of contactors (a safety relay is not required)

• Manual / automatic start

• Can be used for small windows up to large safety doors

• High IP67 and IP69K protection ratings for use in harsh environments

• Suitable for the food and packaging industry according to ECOLAB
